Ferrite Plastic Magnet

Magnetic and Physical Properties

표를 밀어서 확인해보세요.

Class Unit FPM0406 FPM0612 FPM1812 FPM1906 FPM2012
Residual Flux density [G] 1250 1550 2760 2790 2920
Coercive force bHc [Oe] 1100 1350 2420 2390 2500
Coercive force iHc [Oe] 1900 2170 2800 2670 2850
Energy Product (BH)max [MGOe] 0.35 0.6 1.85 1.90 2.10
Recoil Permeability [μr] 1.05 1.05 1.05 1.05 1.05
Density [g/cm³] 2.75 2.85 3.5 3.7 3.7
Rockwell® Hardness ® Scale 118 103 115 115 98
Tensile Strength [g/cm²] 470 420 500 600 450
Heat Distortion Temp. [℃] 120 95 140 165 135
Binder Nylon6 Nylon12 Nylon12 Nylon6 Nylon12

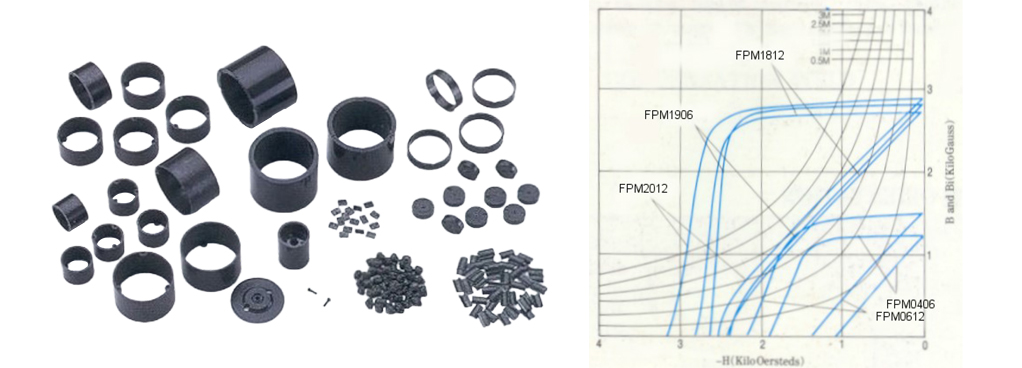

Ferrite Plastic Magnet(Products and Demagnetization curves)
